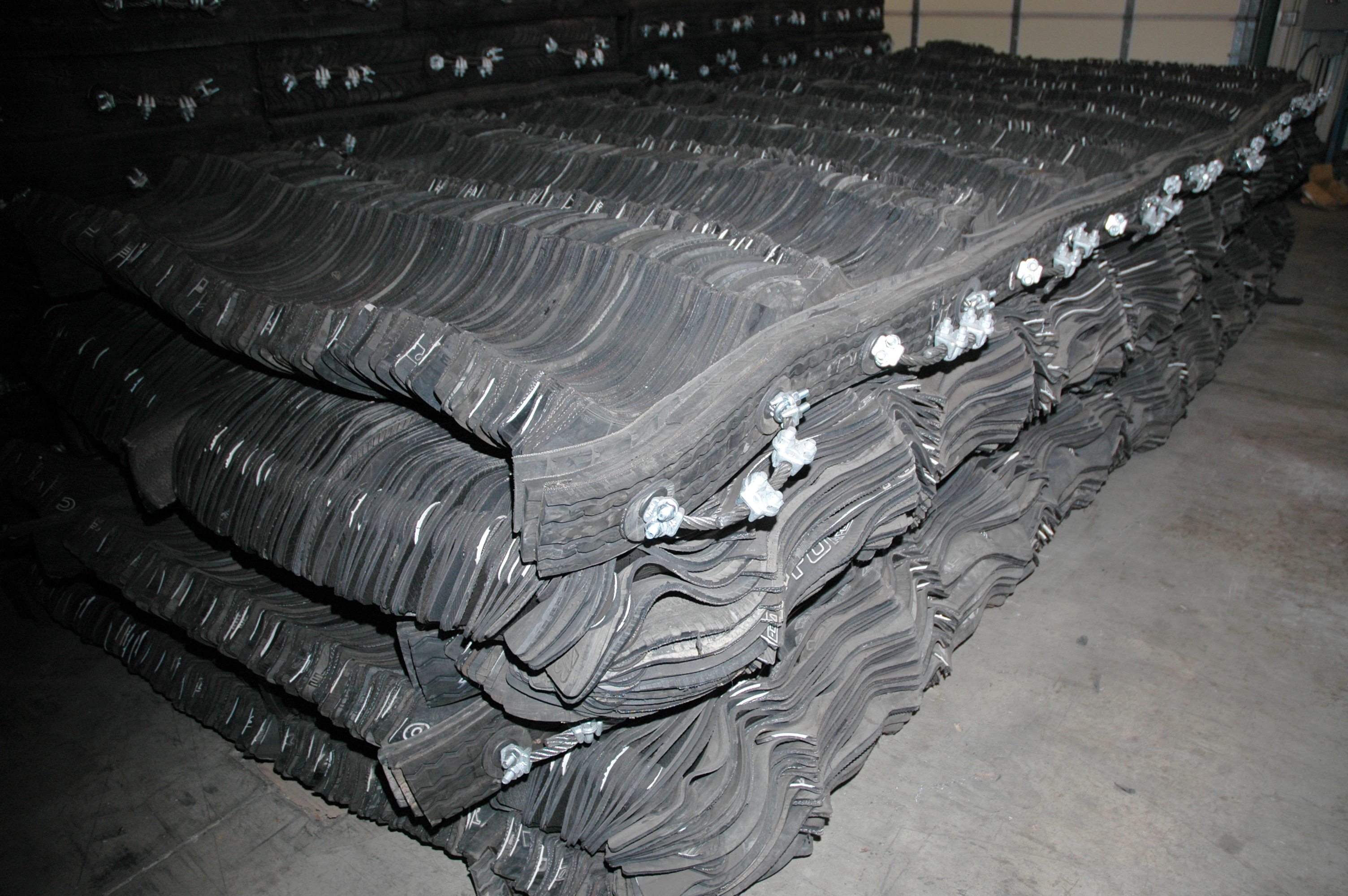

Sidewall Mats
- Overall thickness: 4 inches
- 5/8" New Steel Core Cables spaced 12 inches apart provide a solid internal structure for the mat
- Drop forged cable clamps
- All cables are double clamped for easy handling
- Approximately 20 lbs per square foot
- Lifiting rings are available upon request
| Width (ft) |
Height (ft) |
Square Footage |
Weight (lbf) |
| 4 | 4 | 16 | 320 |
| 6 | 6 | 36 | 720 |
| 4 | 6 | 24 | 480 |
| 6 | 10 | 60 | 1200 |
| 8 | 8 | 64 | 1280 |
| 8 | 10 | 80 | 1600 |
| 6 | 12 | 72 | 1440 |
| 8 | 12 | 96 | 1920 |
| 10 | 10 | 100 | 2000 |
| 10 | 12 | 120 | 2400 |
| 10 | 14 | 140 | 2800 |
| 10 | 16 | 160 | 3200 |
| 12 | 12 | 144 | 2880 |
| 12 | 14 | 168 | 3360 |
| 12 | 16 | 192 | 3840 |
| 12 | 20 | 240 | 4800 |
| 14 | 14 | 196 | 3920 |
| 16 | 16 | 256 | 5120 |
| 16 | 20 | 320 | 6400 |
| 20 | 20 | 400 | 8000 |
| 30 | 30 | 900 | 18000 |
