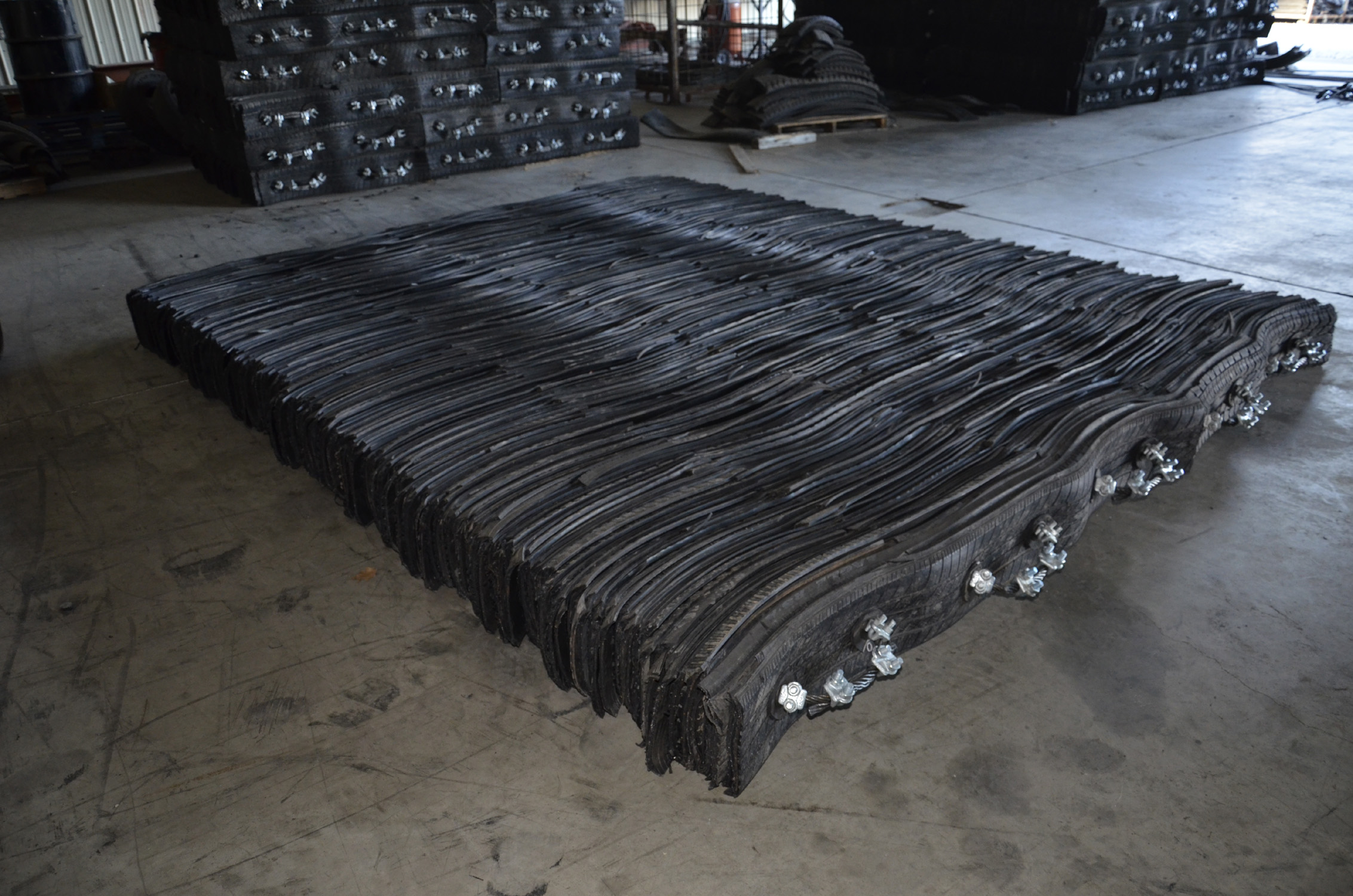

Tread Mats
- Overall thickness: 10 inches
- 5/8" New Steel Core Cables spaced 12 inches apart provide a solid internal structure for the mat
- Drop forged cable clamps
- All cables are double clamped for easy handling
- Approximately 50 LBS per square foot
- Heavyweight mat design
- Lifiting rings are available upon request
| Width (ft) |
Height (ft) |
Square Footage |
Weight (lbf) |
| 4 | 4 | 16 | 800 |
| 6 | 6 | 36 | 1800 |
| 4 | 6 | 24 | 1200 |
| 6 | 10 | 60 | 3000 |
| 8 | 8 | 64 | 3200 |
| 8 | 10 | 80 | 4000 |
| 6 | 12 | 72 | 3600 |
| 8 | 12 | 96 | 4800 |
| 10 | 10 | 100 | 5000 |
| 10 | 12 | 120 | 6000 |
| 10 | 14 | 140 | 7000 |
| 10 | 16 | 160 | 8000 |
| 12 | 12 | 144 | 7200 |
| 12 | 14 | 168 | 8400 |
| 12 | 16 | 192 | 9600 |
| 12 | 20 | 240 | 12000 |
| 14 | 14 | 196 | 9800 |
| 16 | 16 | 256 | 12800 |
| 16 | 20 | 320 | 16000 |
| 20 | 20 | 400 | 20000 |
| 30 | 30 | 900 | 45000 |
